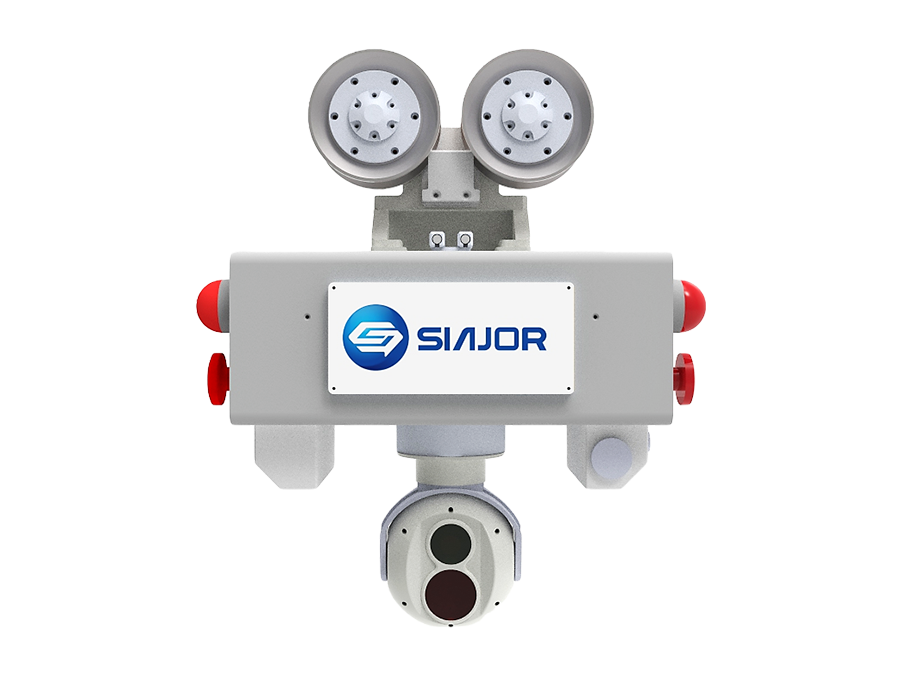

Inspection Robot for Belt conveyor
Specifications：S003A
Classification:
Key words:
Product details
|
Specifications |
S003A |
|
size |
450mmX250mmX550mm |
|
weight |
20kg |
|
Maximum climbing angle |
≤15° □>15° (customized) |
|
Walking speed |
0-1.5m/s |
|
0.3-0.8m/s |
|
|
way of walking |
Suspended, wire rope/hard rail flexible track |
|
positioning accuracy |
±30cm |
|
high braking distance |
Inspection: ≤200mm ≤500mm |
|
Anti-collision detection distance |
>2m |
|
Minimum turning radius |
1000mm |
|
cruise time |
≥8h □Other cruise capabilities can be customized |
|
Pod/Gimbal |
Azimuth motion range 0-360° Pitch range of motion -110°-20° □Double-axis self-stabilization (optional) |
|
Equipped with sensors: Visible light camera: no less than 1080P@ 25FPS Infrared camera: 384X288 □Other sensors can be customized |
|
|
pickup |
With two-way voice intercom function |
|
Directional sensitivity>50dB |
|
|
way of communication |
WiFi □ 4G (optional) □ 5G (optional) |
|
charging method |
Fully automatic wireless charging + wired backup charging |
|
Working environment |
Humidity: 5~95%RH Temperature: -20°C~+55°C □ <-20°C (optional) □ >55°C (optional) |
|
Protection class |
IP65 |
